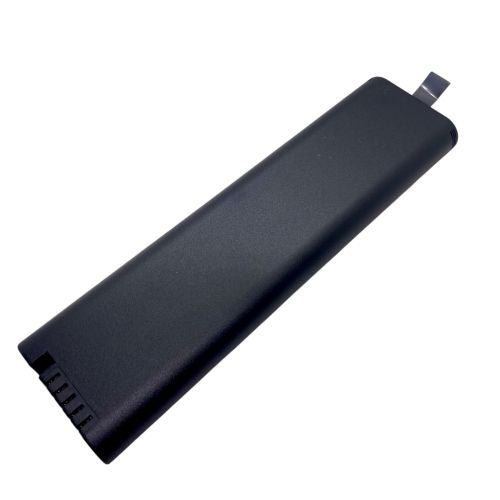

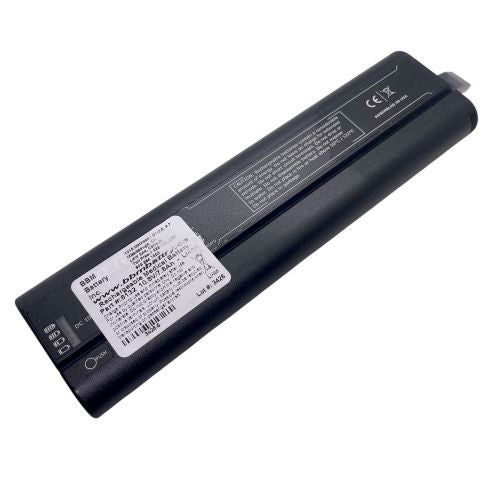

BBM supplies our # 6132 as a biomedical replacement battery for the Spacelabs 91390 Qube Patient Monitor. This battery will replace the 146-0142-01, delivering 10.8V/7.8Ah of power.
Under our license # 94480, BBM is proud to serve as Canada's only Health Canada Certified Battery Manufacturer - this product is Health Canada certified and approved to keep your medical device fully operational.
This battery will fit the following models:
Philips Medical Systems: Optigo Ultrasound M2430
Spacelabs: 91390 Qube
Tektronix: TPS2024B, TPS2014B, TPS2012B, TPS2000B
Yokogawa: AQ7285, AQ7284, AQ7283, AQ7282, AQ7280, MT300, DL350
This battery will replace the following part numbers:
NI2040XXL, 633-75, 633-44, 146-0142-01, TPSBAT, 739883, GPDR204, NI2040, NI2040A22, NI2040A24, NI2040HD24, NI2040PH, NI2040XD24, NI2040XXL24, SM204, N9910X-870, B11993
Battery Specifications:
Part Number: 6132
Chemistry: Li-Ion (Rechargeable)
Voltage: 10.8V
Capacity: 7.8Ah
Dimensions: 8.42in. x 2.32in. x 0.89in.
Terminals: Slide-In Contact Terminals
