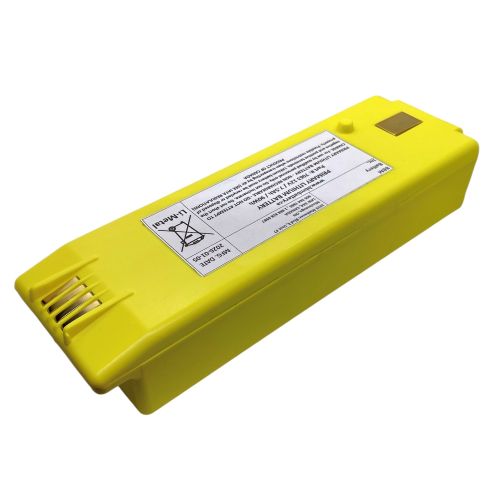

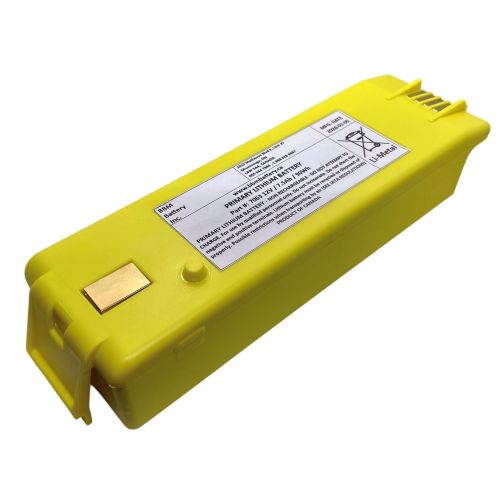

BBM supplies the aftermarket battery # 7063 for the Cardiac Science Powerheart G3 Pro AED Model 9300P. This battery replaces the Cardiac Science Intellisense battery 9145-301, delivering 12V/7.5Ah of power.
This 7063 battery pack serves exclusively as a replacement for the Powerheart G3 Pro 9300P colour-screen variant - if you require a replacement for the standard Powerheart G3 and G3 Plus, please see our cross reference listing for the 7064 or 9146-ABE.
The FDA has granted clearance for these biomedical battery packs under filing 510(k) K082861.
Under our license # 94480, BBM is proud to serve as Canada's only Health Canada Certified Battery Manufacturer - this product is Health Canada certified and approved to keep your medical device fully operational.
This battery will fit the following models:
Powerheart G3 Pro Model 9300P
This battery will replace the following part numbers:
9145-301, AM9145, B11619, OM0035
Battery Specifications:
Part Number: 7063
Chemistry: Lithium
Voltage: 12V
Capacity: 7.5Ah
Dimensions: 1.80in. x 2.75in. x 9.40in.
Terminals: Contact Terminals
Installation Instructions:
1. Insert the battery's end with contacts into the AED battery compartment.
2. Push the other end of the battery firmly into the AED until the battery snaps into place.
3. IMPORTANT: Open the AED lid for 5 seconds to initiate self-test. The status indicator will turn green indicating proper installation. Close the lid.
