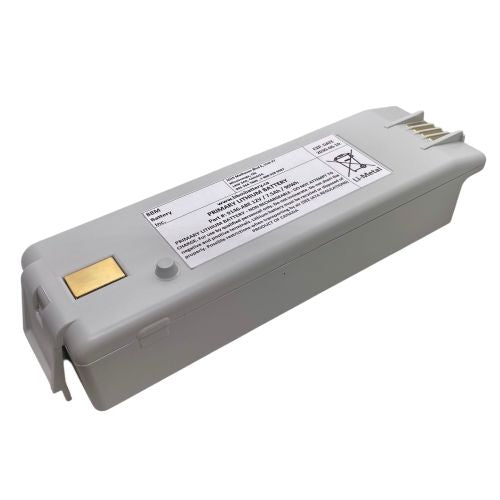

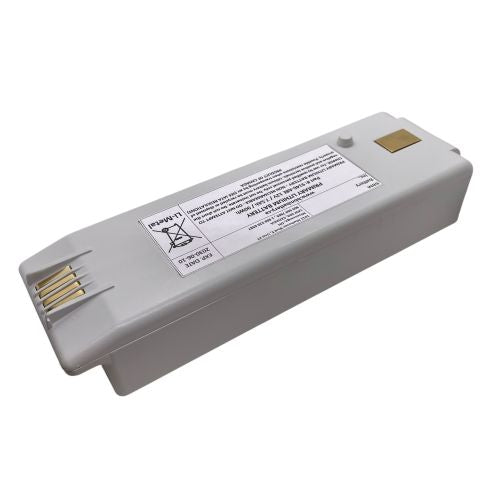

BBM supplies the aftermarket battery # 9146-ABE for the Cardiac Science Powerheart G3 Model 9300A, 9300E and G3 Plus Model 9390A, 9390E. This battery replaces the Cardiac Science Intellisense battery 9146-102, 9146-202 and 9146-302, delivering 12V/7.5Ah of power.
This 9146-ABE battery pack serves exclusively as a replacement for the standard Powerheart G3 and G3 Plus - if you require a replacement for the Powerheart G3 Pro (Model 9300P), please see our cross reference listing for the 7063.
The FDA has granted clearance for these biomedical battery packs under filing 510(k) K082861.
Under our license # 94480, BBM is proud to serve as Canada's only Health Canada Certified Battery Manufacturer - this product is Health Canada certified and approved to keep your medical device fully operational.
This battery will fit the following models:
Cardiac Science Powerheart G3: Model 9300A, Model 9300E
Cardiac Science Powerheart G3 Plus: Model 9390A, 9390E
This battery will replace the following part numbers:
9146-102, 9146-202, 9146-302, B11615, OM0035, AM9146-1, AM9146-2, 7064
Battery Specifications:
Part Number: 9146-ABE
Chemistry: Lithium Sulfur Dioxide (Li-SO2)
Voltage: 12V
Capacity: 7.5Ah
Dimensions: 9.40in x 1.80in x 2.75in
Terminals: Contact Terminals
Installation Instructions:
1. Insert the battery's end with contacts into the AED battery compartment.
2. Push the other end of the battery firmly into the AED until the battery snaps into place.
3. IMPORTANT: Open the AED lid for 5 seconds to initiate self-test. The status indicator will turn green indicating proper installation. Close the lid.
