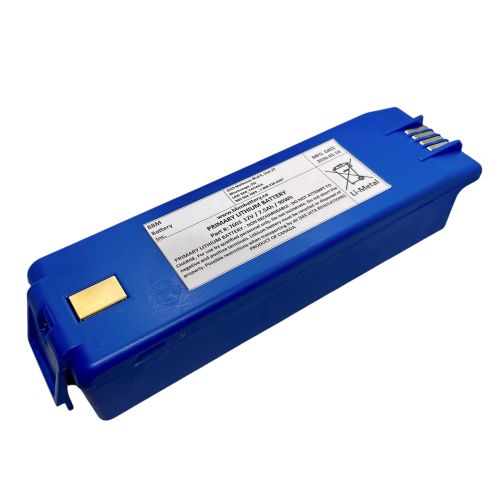

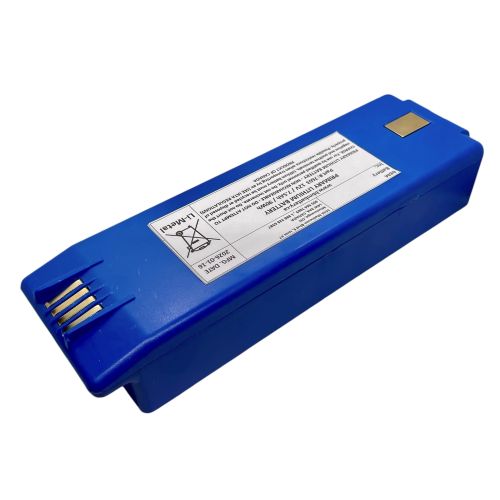

BBM supplies the aftermarket battery # 7603 for the Cardiac Science Powerheart AED 9200RD, 9210RD and First Survivalink 9100, 9110, 9200D, 9120D. Designed as a replacement for the Cardiac Science 9141R-001, this battery delivers 12V/7.5Ah of power.
The FDA has granted clearance for these biomedical battery packs under filing 510(k) K082861.
Under our license # 94480, BBM is proud to serve as Canada's only Health Canada Certified Battery Manufacturer - this product is Health Canada certified and approved to keep your medical device fully operational.
This battery will fit the following models:
Powerheart AED: 9200RD, 9210RD, 9100, 9141, 9200, 9210
First Survivalink: 9100, 9110, 9200D, 9210D
This battery will replace the following part numbers:
9141R-001 (No Nub), AM9141
Battery Specifications:
Part Number: 7603
Chemistry: Lithium Sulfur Dioxide (Li-SO2)
Voltage: 12V
Capacity: 7.5Ah
Dimensions: 1.80in. x 2.75in. x 9.40in.
Terminals: Contact Terminals
Installation Instructions:
1. Insert the battery's end with contacts into the AED battery compartment.
2. Push the other end of the battery firmly into the AED until the battery snaps into place.
3. IMPORTANT: Open the AED lid for 5 seconds to initiate self-test. The status indicator will turn green indicating proper installation. Close the lid.
