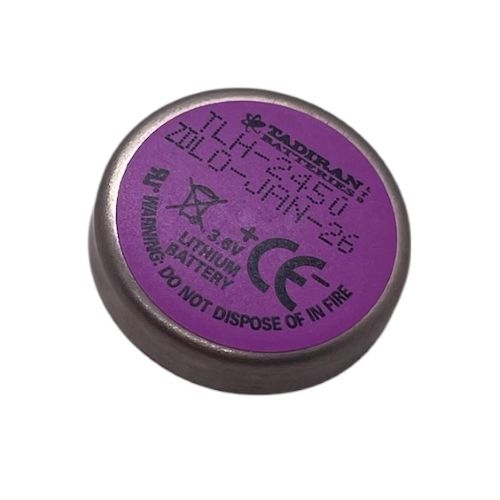

BBM supplies the Tadiran TLH2450/P Battery, the high temperature version of the Tadiran TL-2450/P. This non-rechargeable lithium 24.5mm Wafer Style cell delivers 3.6V/550mAh of power and is assembled with two pins for circuit mount connection. Manufactured in Israel by Tadiran - In stock and ready to ship.
This model operates under an extremely wide range of temperatures (-55°C - +125°C) - for the standard wide temperature model, please see our cross reference listing for the TL-2450/P.
This battery will replace the following part numbers:
TL-2450/P
Battery Specifications:
Part Number: TLH-2450/P
Chemistry: Lithium Thionyl Chloride
Voltage: 3.6V
Capacity: 550mAh
Dimensions: 24.5mm Wafer Style Cell, 0.96" Dia x 0.23" H (24.5mm x 5.8mm)

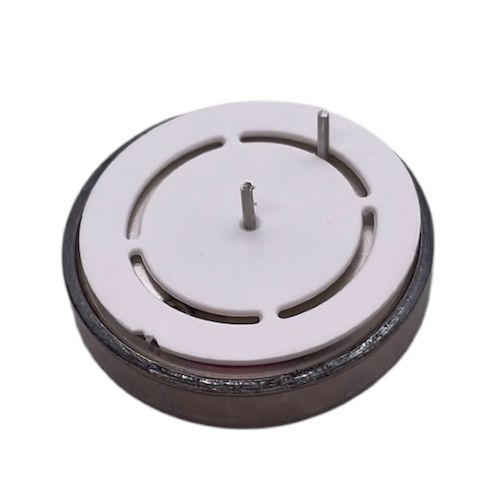

Terminals: PC Pins
BIN: CS-1716
